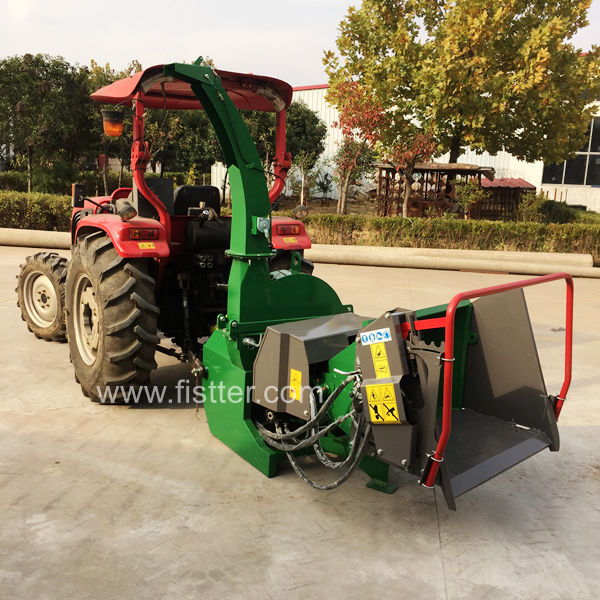

BX52R PTO WOOD CHIPPER

1. WS52R garden shredder
2. 5 inches capacity
3. Above 25HP tractor PTO powered and towed
4. With a self-contained hydraulic oil tank and pump system,
Availability:
Quantity:

The WS52R Wood Chipper /garden shredder owns four knives type rotor and hydraulic feed system, meaning logs and branches  are easily control fed for continuous chipping at maximum capacity.

The self-contained hydraulic system provides stable working to the main machine, eliminating the hot problem of the hydraulic oil from working tractors. Hydraulic valves and hoses are protected. The hydraulic parts can work with durable long life. So the machine will be in use for a longer life-time using and less maintenance.





Advantages include:
1. 5" x 10" feeding capacity
2. Above 25HP tractor PTO powered and towed
3. With a self-contained hydraulic oil tank and pump system,
4. Solid and rock structure built with 400kg net weight
5. 4 double edges sharp cutting knives and 1 bed blade
6.  Latest CE strict safety standards
7. More high efficiency and less maintenance by using branded parts and accessories
8. Using friendly with humanization design
9. Hopper folded for better and safer transportation
10. Double hands operating makes sure the higher safety and quality


Detailed Photos

bx52r-wood-chipper-32 (4)bx52r-wood-chipper-32 (2)bx52r-wood-chipper-32 (3)bx5272-423 (4)



Workshop Corners

bx72-321 (1)bx72-321 (2)bx72-321 (3)





ModelBX52R
Drive SystemDirect drive, pto with shearbolt
HP requirements45-100
Chipper CapacityMax 5" Dia.
Chipper Housing Opening5½" x 10"
Rotor Size630mm
Number of Rotor Knives4
Rotor Weight50kg
Feeding SystemHydraulic Feed
Dimensions68"L x 72"W x 85"H
Hopper Opening32" x 32"
Discharge Hood Rotation360
Discharge Hood Height76"
Rated RPM540~1000
Weight430kg






Previous:
Next:
The specifications of our products are tailor-made to customers′ requirments. We also can do OEM for customers.
