DWC40 Mobile Diesel Wood Chipper

product description
A. Mobile 40hp diesel Wood Chipper,
B. complete automatic hydraulic feeding roller, 3 blades, 8" diameter capacity,
C. powered by electric start diesel engine in 22hp, 40hp, 50hp,
D. equipped with turning and brake lights,
E the knives, 2" ball hitch, safety chains and leaf spring on the axle,
F. Discharge hood rotates 360 degrees
Availability:
Quantity:
Inquire Add to Basket





Main Features of 40hp / 50hp wood chippers made by Weifang Fistter.


A. Towable Wood Chipper,

B. complete automatic hydraulic feeding roller, 2 blades, 8" diameter capacity,

C. 40hp / 50hp powered by electric start diesel engine

D. equipped with turning and brake lights,

E  the knives, 2" ball hitch, safety chains and leaf spring on the axle,

F. Discharge hood rotates 360 degrees

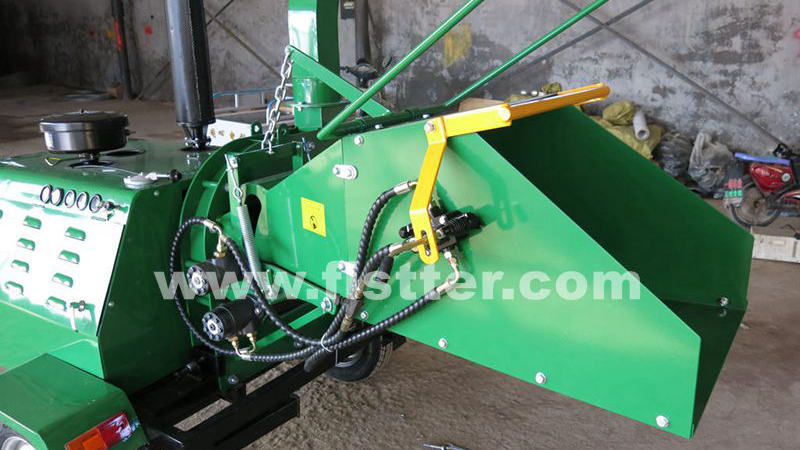

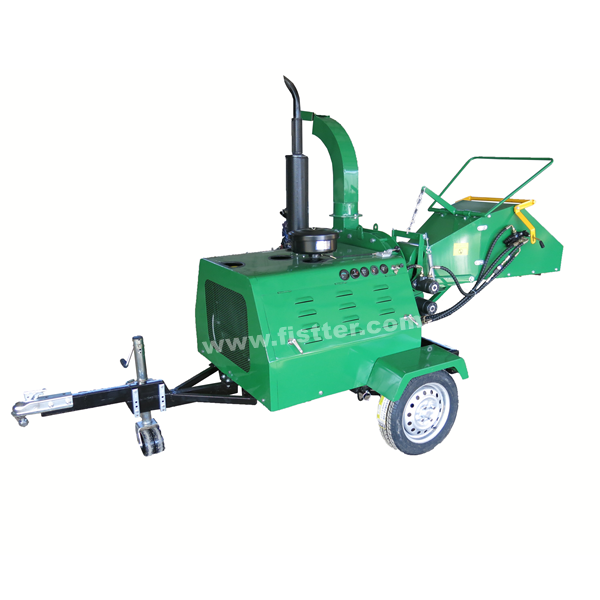

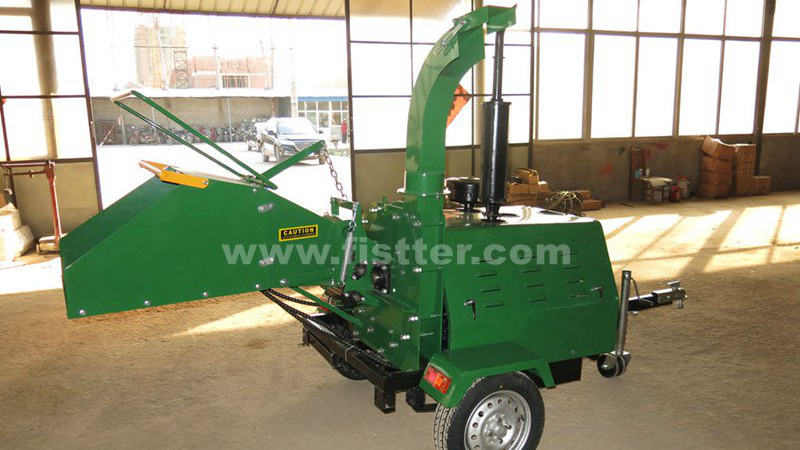

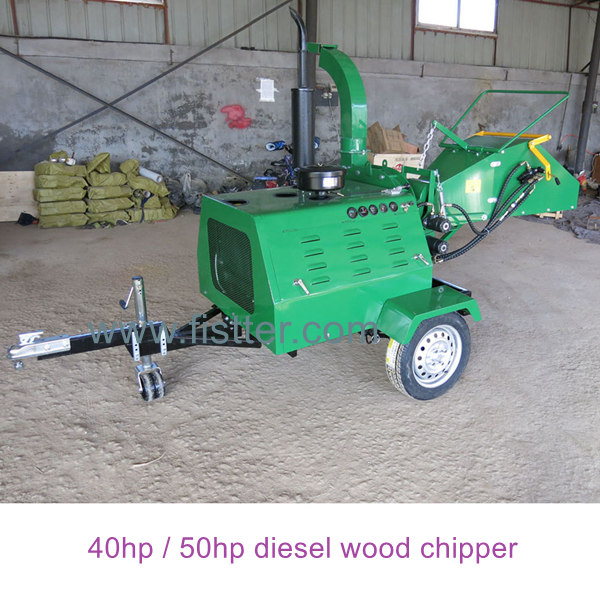

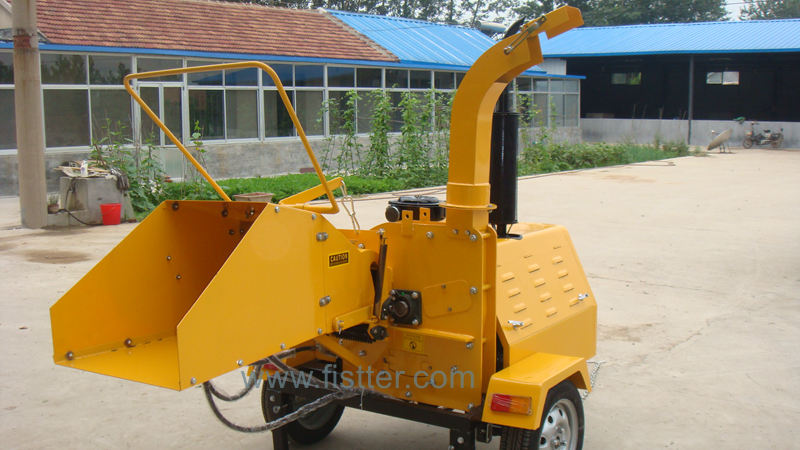

Detailed Photos

dwc40-22 (4)dwc40-22 (5)dwc40-22 (6)dwc40-22 (7)dwc40220452 (4)dwc-pack (1)

Type: Vertical water cooled, 4 stroke, direct injection

Number of cylinders: 4

Rated Power / Revs: 29/2200

Min. Fuel consumption g/kw.h: <247

Total Displacement: 1.809

Starting Type: Electric Start

Dimension: 687(L) x 494(W) x 623(H)mm

Net Weight: 780Kg

Chipper Capacity: 8” or 200mm

Feeding system: Full Hydraulic

Rotor Plate Size: 600mm

Rotor Plate Weight: 85Kg

Number of Knives: 1 Stationary Knife (Anvil) and 2 Rotor Knives

Packing Size (to hopper discharge): 1700(L) x 1350(W) x 1110(H)mm

Feed Hopper Inner Opening: 200 x 220mm

Discharge Hood Height: 2000mm

Rated Rotary Speed: 1200rpm

Tyre Size: 18 x 8.5-8, Turf Tyre

Motor Model: Changchai 490

Total Weight: 620Kg

Colour: Black (photo an example)

Model: Trailer Mounted Chipper


Previous:
Next:
The specifications of our products are tailor-made to customers′ requirments. We also can do OEM for customers.
