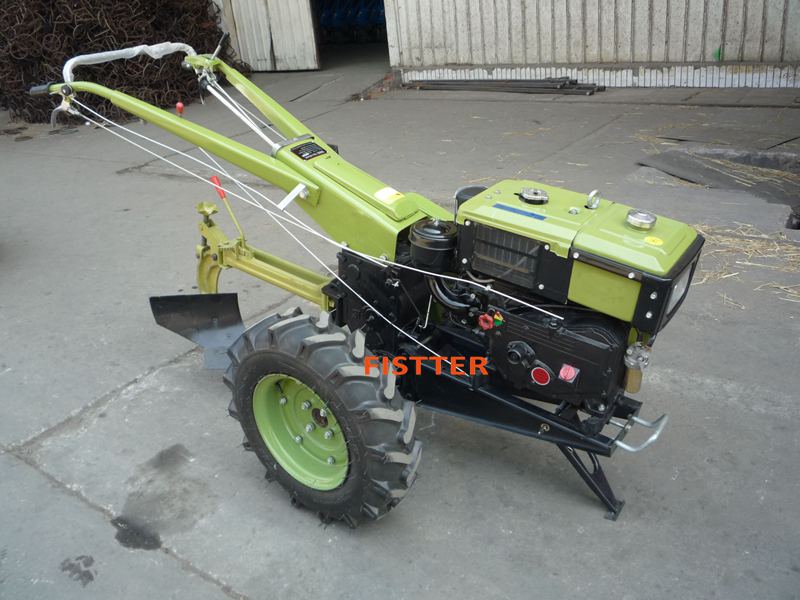

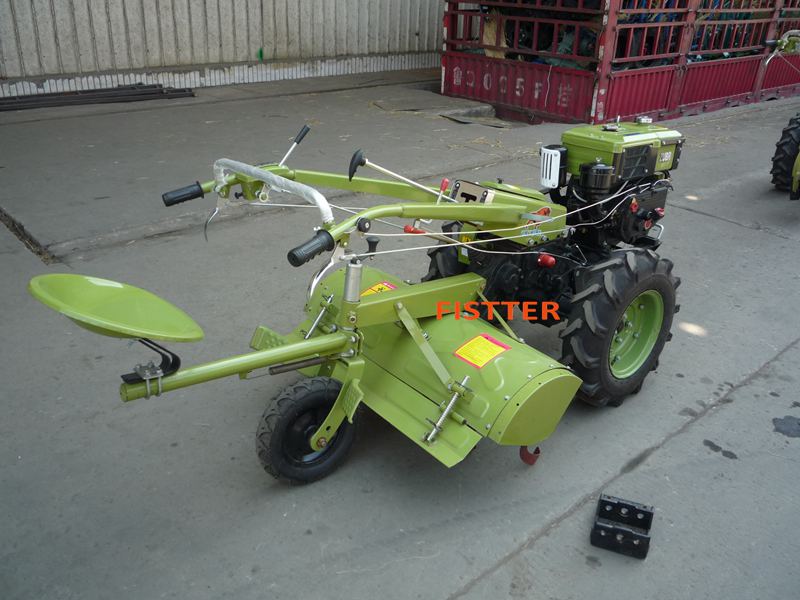

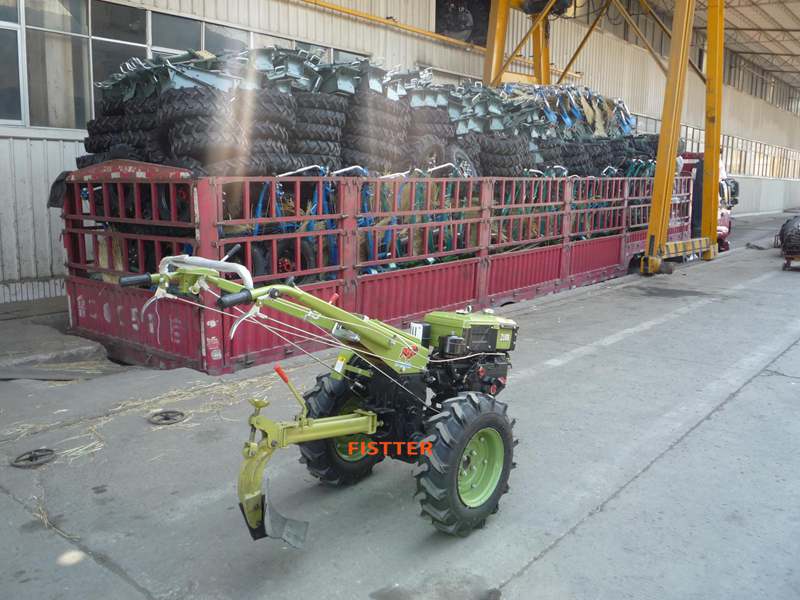

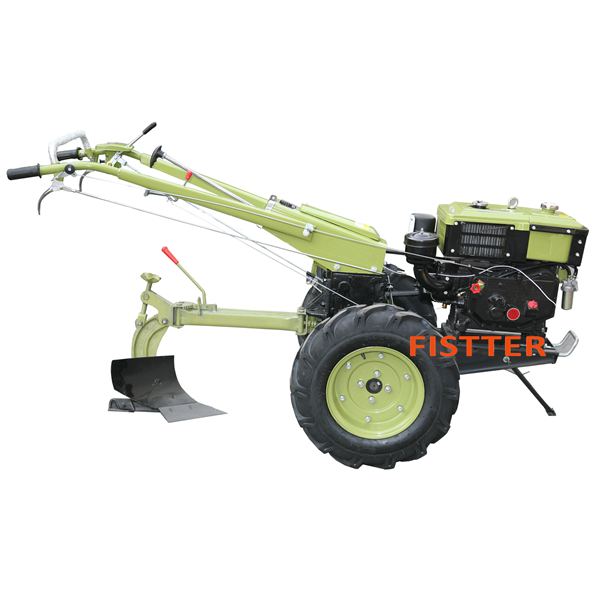

8-12hp walking tractor

8 ~ 12hp walking tractor
diesel engine
popular in the world
high quality
Availability:

64443


Parameters

Model SH-81 SH-101 SH-121
Overall dimensions (lxwxh)mm 2120x840x1160 2120x840x1160 2120x840x1160
Wheel track  (mm) 740 640 500 740 640 500 800 740 600
Ground clearance (mm) 210 210 210
Tyres 6.00-12 6.00-12 6.00-12
Construction weight (kgs) 210 265 375
Speed (km/h) Forward 1.4  2.5  4.1 1.4  2.5  4.1 1.4  2.5  4.1
5.3  9.4  15.3 5.3  9.4  15.3 5.3  9.4  15.3
Reverse 1.1  3.8 1.1  3.8 1.1  3.8
Rotary Tiller High 256 256 275
Low 188 188 219
Diesel engine Model R180 R190 R195
Type Single cylinder,horizontal, Single cylinder,horizontal, Single cylinder,horizontal,
Water cooled Diesel Water cooled Diesel Water cooled Diesel
4 stroke 4 stroke 4 stroke
Rated power kw(hp) 5.8 (8) 7.3 (10hp) 8.7 (12hp)
Rated speed  (rpm) 2000 2000 2000
Net Weight (kgs) 130 140 150


P1050413P1050414P1060103P1060002

Previous:
Next:
The specifications of our products are tailor-made to customers′ requirments. We also can do OEM for customers.
