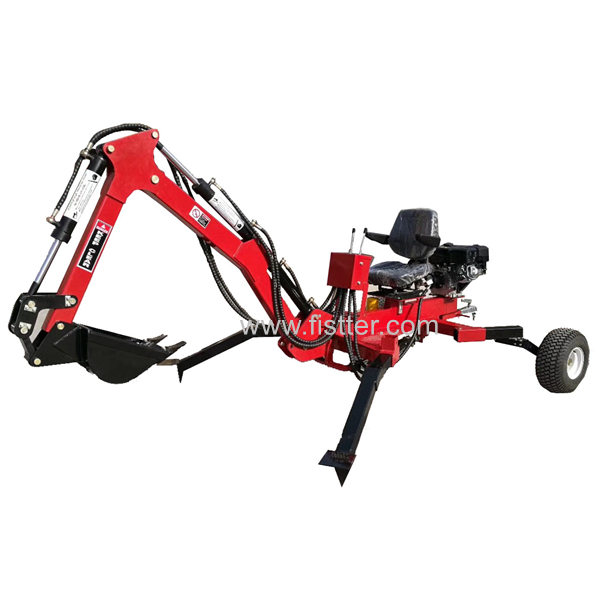

9hp ATV Towable Backhoe with Thumb

product description
1. 9hp ATV backhoe digger
2. Working depth: 9 inch
3. CE certification
4. Self hydraulic systern
5. Safety chain, spring, width wheel
6. Competetive factory price

Availability:

Quantity:



Inquire Add to Basket

Main Features of ATV backhoe excavator made in China

atvbackhoe332

1. MB-300 towable backhoe with 9hp gasoline engine, electric start / recoil start
2. 2 balls hitch
3.hydraulic feeding system,with free flow valve,easy to control feeding rate
4.horizontal design,easy to operate.

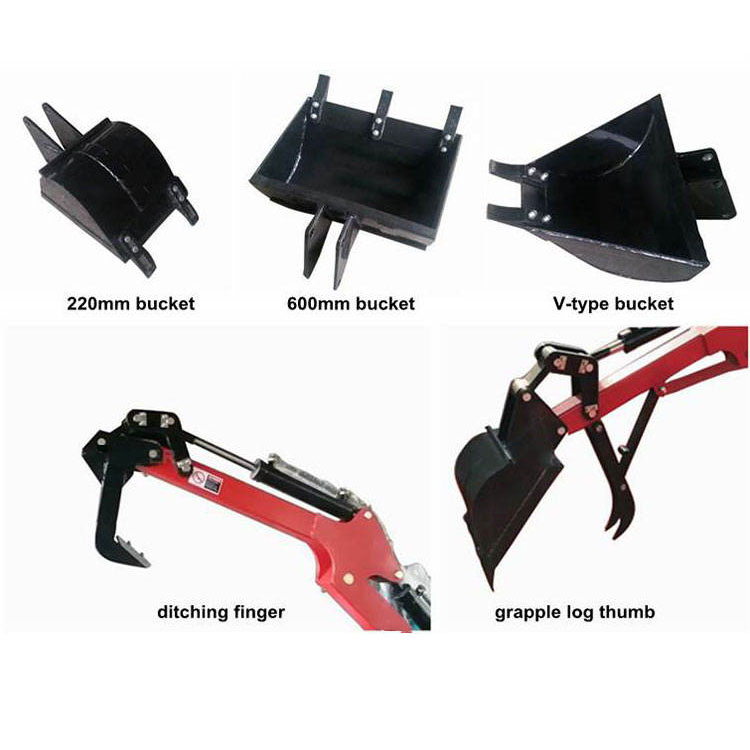

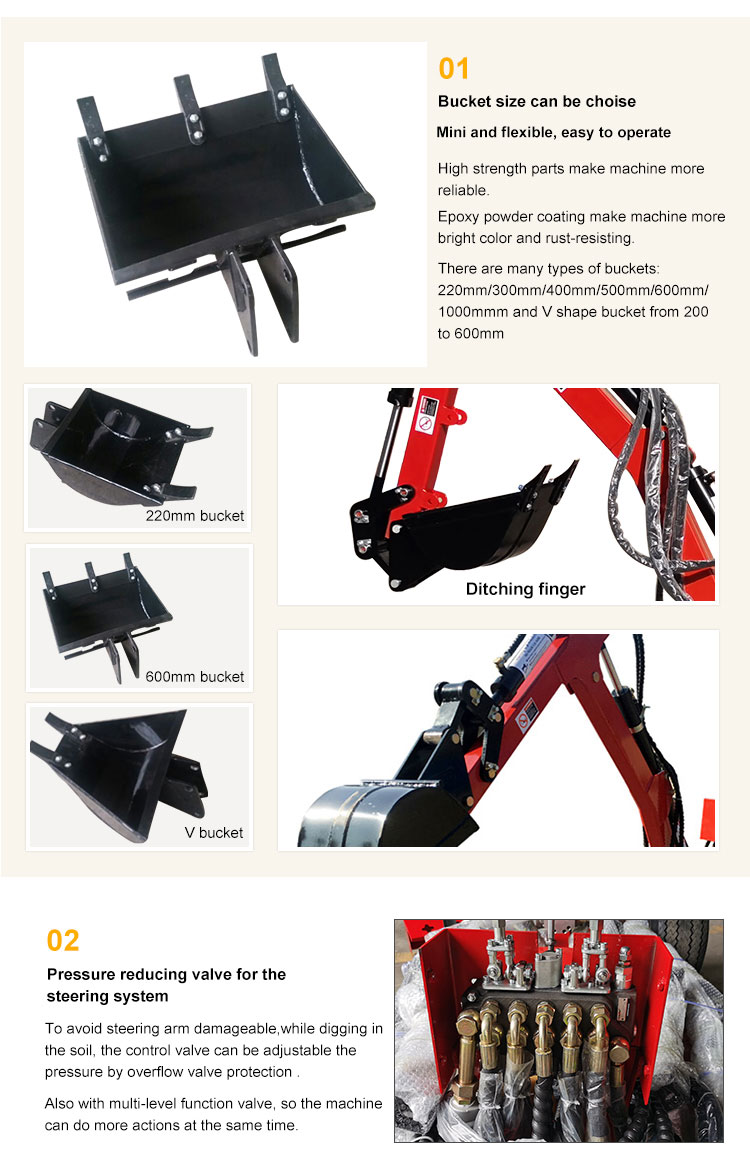

5.Available bucket: 220mm, 300mm, 400mm, 500mm, 600mm.
6.suit for America, Australia & Europe market.

atvbackhoe9323 (2) atvbackhoe9323 (3)

5332324

MODEL	MB-300

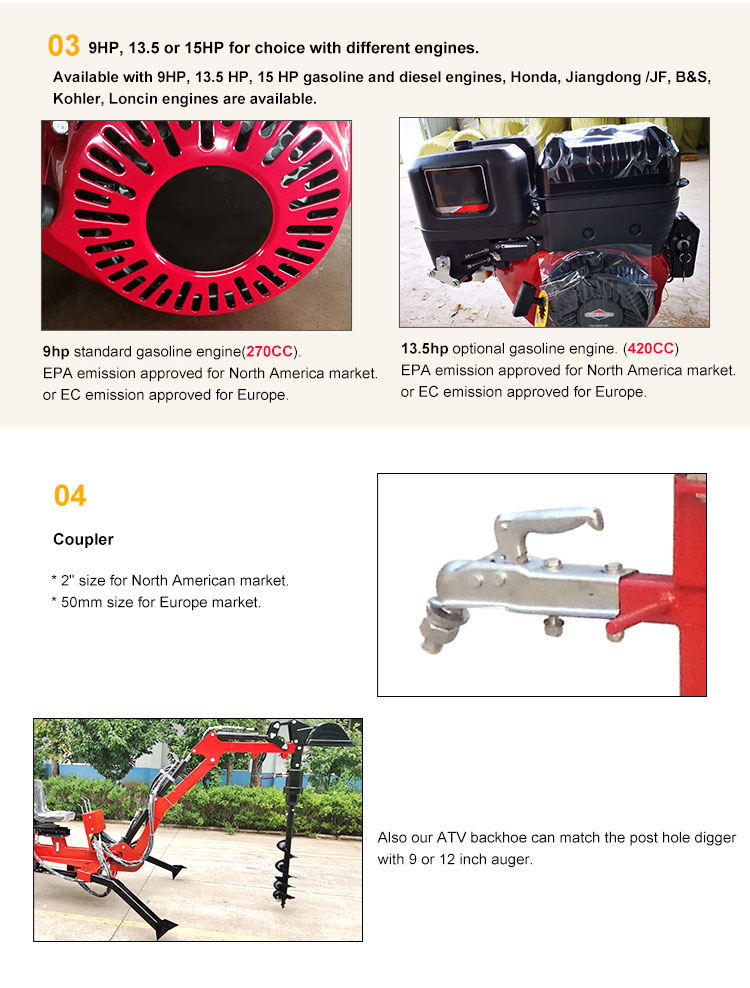

Power	9~15hp gasoline engine ( brand: Loncin, Jiangdong, B&S, Kohler, etc)
Weight	510kgs
Max. digging depth	2400mm
Max. digging Radius	2800mm
Max. digging height	2500mm
Max. uploading height	1200mm
Stabilizer width	1800mm
Swing angle for boom	140 degree
Bucket turning angle	160 degree
Bucket cubage	0.036cbm
Bucket width	220mm
Optional bucket	220mm, 300mm,400mm,450mm,500mm
Dimensions (L x W x H)	2240x1000x850mm

MODEL	MB-300
Power	9~15hp gasoline engine ( brand: Loncin, Jiangdong, B&S, Kohler, etc)
Weight	510kgs
Max. digging depth	2400mm
Max. digging Radius	2800mm
Max. digging height	2500mm
Max. uploading height	1200mm
Stabilizer width	1800mm
Swing angle for boom	140 degree
Bucket turning angle	160 degree
Bucket cubage	0.036cbm
Bucket width	220mm
Optional bucket	220mm, 300mm,400mm,450mm,500mm
Dimensions (L x W x H)	2240x1000x850mm
