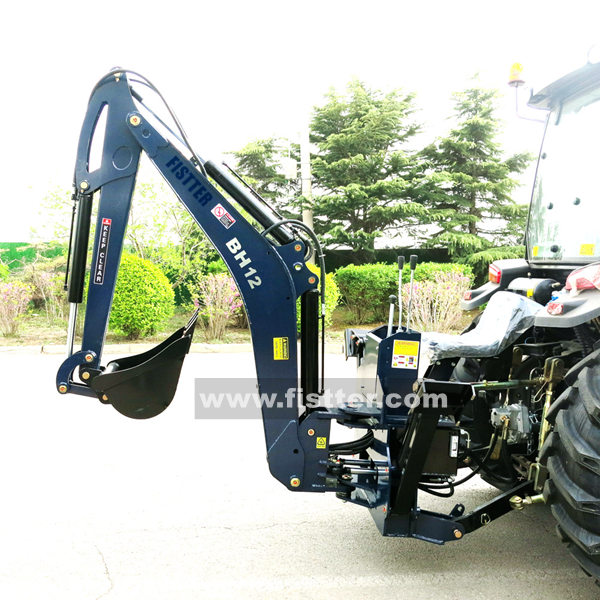

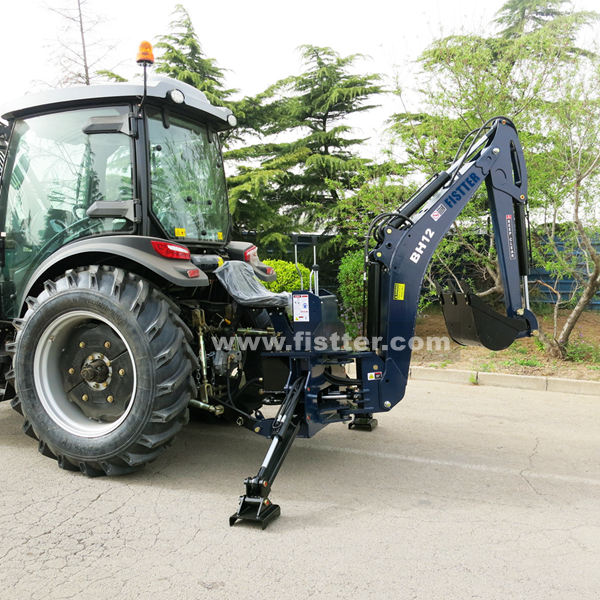

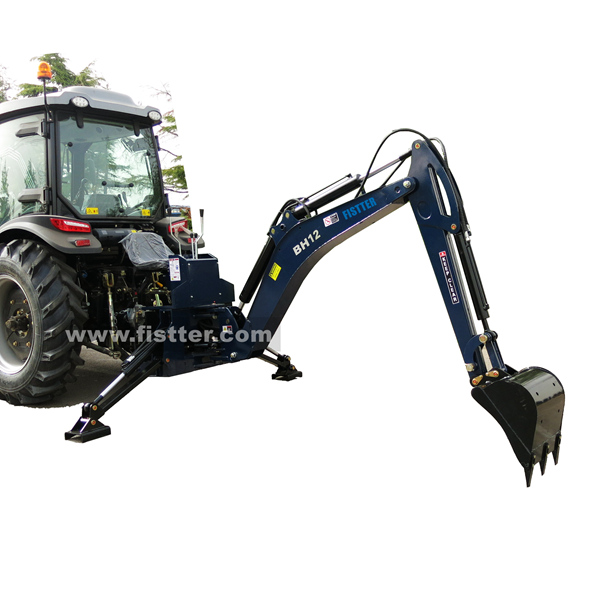

BH-12 backhoe for 80 ~ 150hp four wheel tractors.
Parameters:
| Model | BH—6 | BH—7 | BH—8 | BH—9 | BH—10 | BH—12 |
| Fitting power | 16-35 hp | 25-75 hp | 45-85hp | 50-100hp | 70—125hp | 80-150hp |
| Max. digging depth | 1850 mm | 2150 mm | 2640 mm | 2900 mm | 3000 mm | 3500 mm |
| Digging depth Flat bottom | 1600 mm | 2000 mm | 2500 mm | 2760 mm | 2800 mm | 3350 mm |
| Max. digging height | 2500 mm | 3400 mm | 3510 mm | 3900 mm | 4000 mm | 4300 mm |
| Loading heigh | 1400 mm | 1760 mm | 2000 mm | 2362 mm | 2337 mm | 2700 mm |
| Unloading heigh | 1733 mm | 1878 mm | 1952 mm | 2413 mm | 2540 mm | 2770 mm |
| Max. digging radius | 2800 mm | 3360 mm | 3930 mm | 3977 mm | 3886 mm | 4300 mm |
| Max. digging load | 1300 kg | 1200 kg | 1600 kg | 1900 kg | 2600 kg | 2700 kg |
| Bucket rofation (°) | 160° | 160° | 160° | 150° | 150° | 172° |
| Swing angle (°) | 140° | 140° | 140° | 160° | 160° | 180° |
| Valve standard press | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa | 16 Mpa |
| Bucket width | 300 mm | 400 mm | 450 mm | 480 mm | 500 mm | 550 mm |
| Bucket volume | 0.03 m3 | 0.036 m3 | 0.048 m3 | 0.054 m3 | 0.06 m3 | 0.07 m3 |
| Weight | 580 kg | 670 kg | 760 kg | 820 kg | 870 kg | 960 kg |
