Mini Excavator 800kg

Mini Excavator
Capacity: 1000kg
Motor: diesel / gasoline

Availability:

Quantity:



Inquire Add to Basket

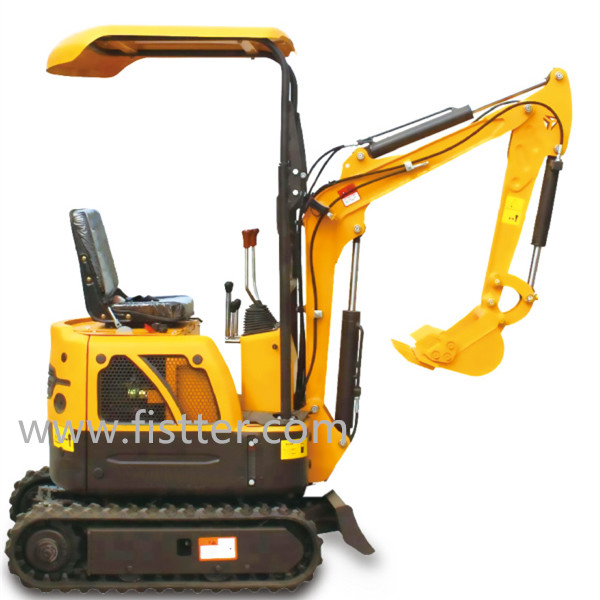

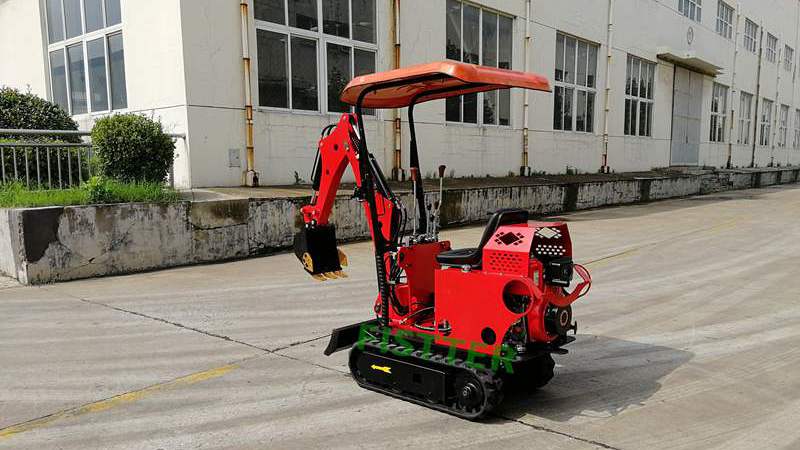

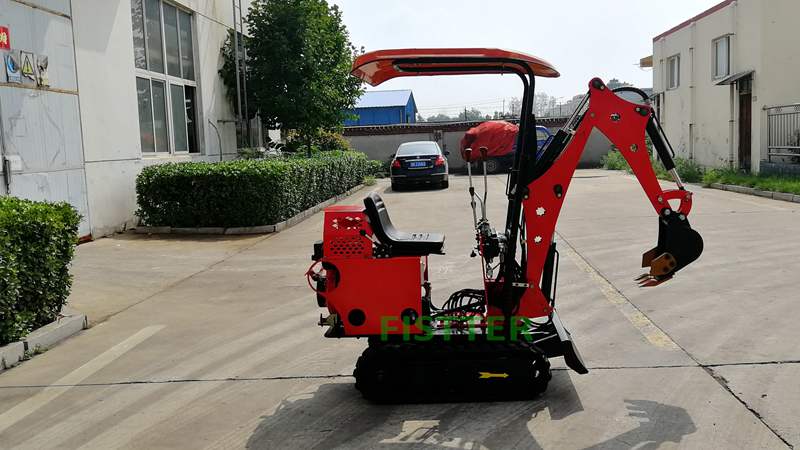

FISTTER EXCAVATOR - 08MODEL

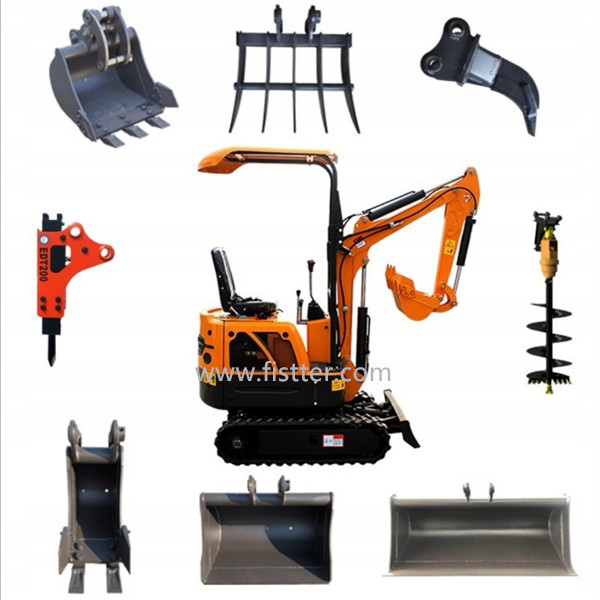

MODEL-08: 11.7hp, 800kg, 0.025 cbm bucket, digging deapth:1500mm, can equip with Auger, Wood Grab, Roof, Ripper, Rake, 200mm Narrow Bucket, 380mm Standard Bucket, 500mm Leveling Bucket

fb08-24 (2) fb08-24 (1) fb08-23 (6) fb08-24 (3)

Type	MODEL- 10
weight	900kg
digging bucket capacity	0.025cbm/120kg
bucket width	380mm
Enging	Koop, B&S, LIFAN
Bore stroke	Single cylinder, fan cool
Rated power	8.2kw/3600rpm
Displacement	6.8ml/r
Travel speed	1.5km/h
Main Demensions
Overal dimension(LxWxH)	2775x9300x2219mm
Wheelbase	910mm
Total length of track	1230mm
Platform ground clearance	380mm
Platform back turning radius	784mm
Chassis width	896mm
Track width	180mm
Chassis ground clearance	132mm
Track height	320mm
Operating Range
Max. Digging depth	1650mm
Max. Vertical digging depth	1375mm
Max. Digging height	2610mm
Max. Dumping height	1850mm
Max. Digging radius on ground	2850mm
Min. Rotation radius	1330mm
Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255mm

Type	MODEL- 10
weight	900kg
digging bucket capacity	0.025cbm/120kg
bucket width	380mm
Enging	Koop, B&S, LIFAN
Bore stroke	Single cylinder, fan cool
Rated power	8.2kw/3600rpm
Displacement	6.8ml/r
Travel speed	1.5km/h
Main Demensions
Overal dimension(LxWxH)	2775x9300x2219mm
Wheelbase	910mm
Total length of track	1230mm
Platform ground clearance	380mm
Platform back turning radius	784mm
Chassis width	896mm
Track width	180mm
Chassis ground clearance	132mm
Track height	320mm
Operating Range
Max. Digging depth	1650mm
Max. Vertical digging depth	1375mm
Max. Digging height	2610mm
Max. Dumping height	1850mm
Max. Digging radius on ground	2850mm
Min. Rotation radius	1330mm
Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255mm
