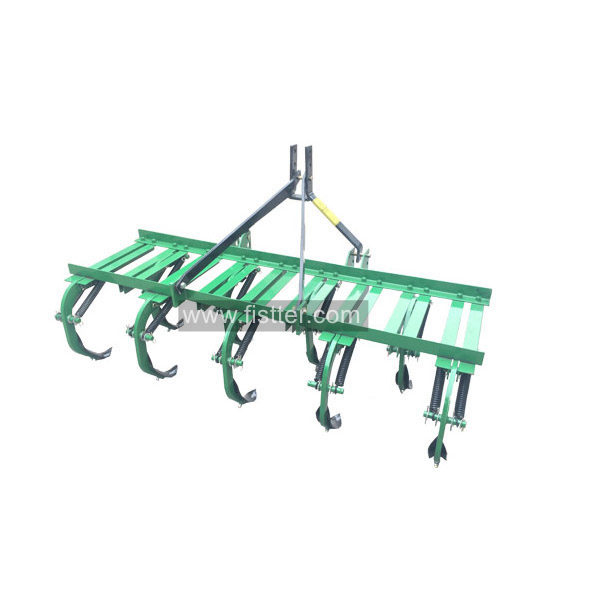

Spring Cultivator:


The 3ZT series of spring cultivator is developed from our company according to the demand of foreign market. This machine aadopts double-spring tension device which enables the tines during operation  to bounce when meet with obstacles and return to normal working quickly after over them, by which the tines are protected .It has advantages of row spacing to be conveniently adjusted and the depth to be easily controlled. And the machine is suitable to cultivate and loosen soil in the corn, cotton and beans field.

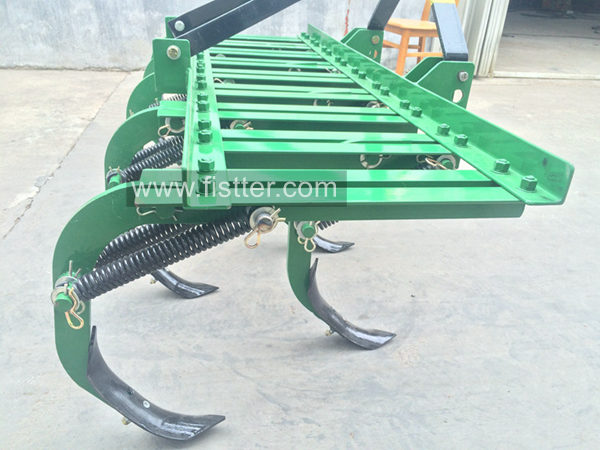

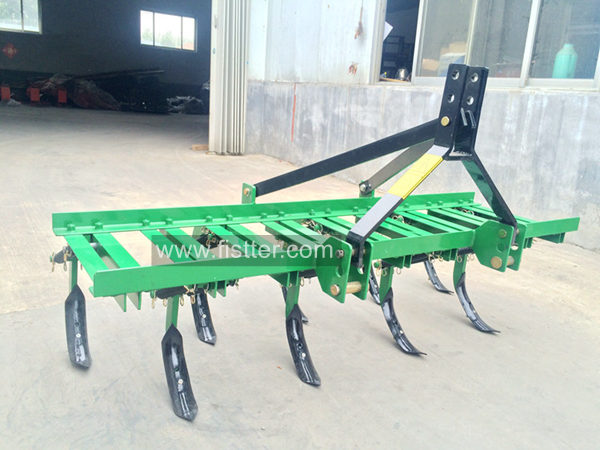

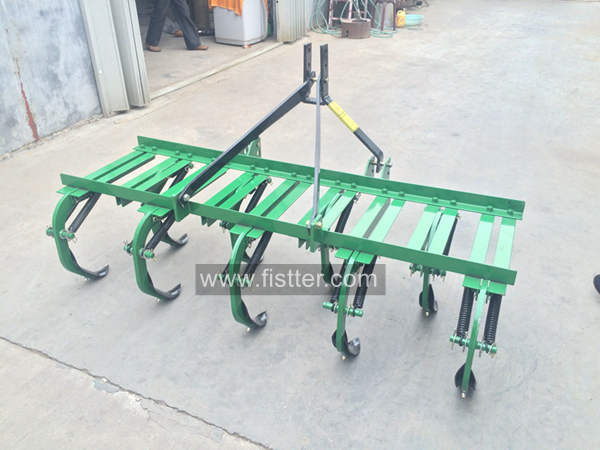

springcultivator032 (2)springcultivator032 (4)springcultivator032 (3)

Model

3ZT-1.2

3ZT-1.4

3ZT-1.8

3ZT-2.2

3ZT-2.5

3ZT-3.0

Width of cut (mm)

1200

1400

1800

2200

2500

3000

Depth of cut (mm)

100-250

No of tines

5

7

9

11

13

15

Weight (kg)

260

320

400

490

550

640

Tractor power (hp)

25

30-40

40-50

50-70

70-80

80-100

Mounted cat

Cat l

Cat ll


Previous:
Next:
The specifications of our products are tailor-made to customers′ requirments. We also can do OEM for customers.
